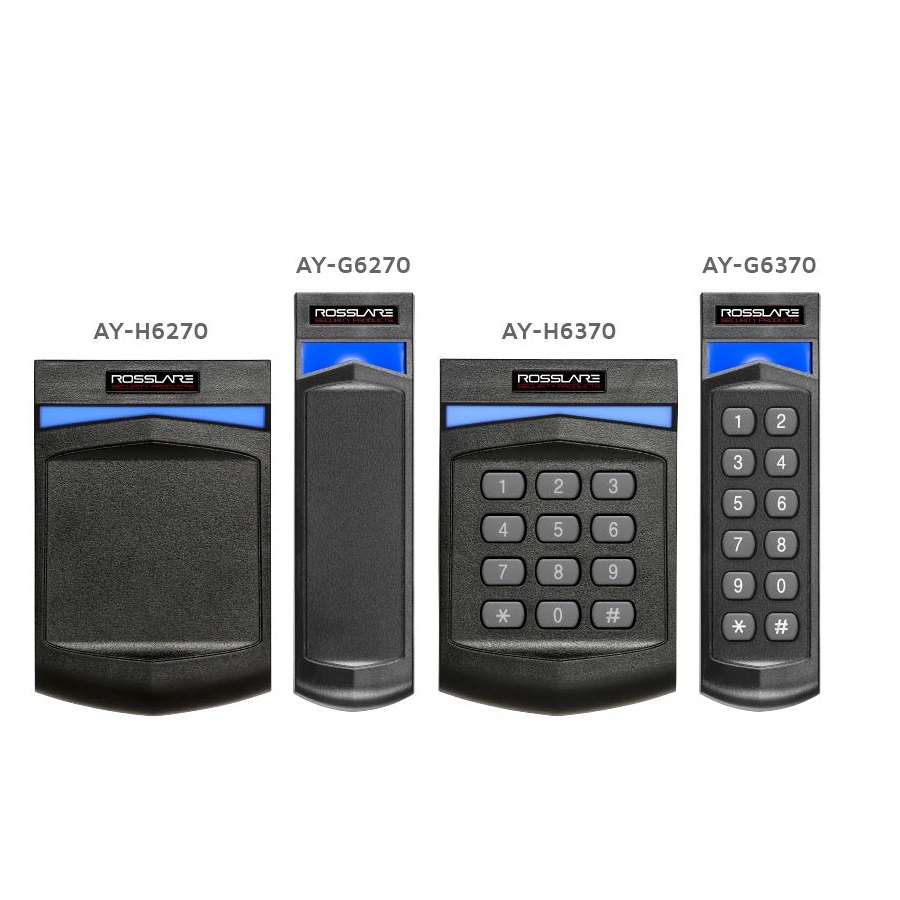

AY-G6270B+TR0

O2S MIFARE AND MIFARE PLUS EV1 PROX READER

SKU AY-G6270B+TR0 Categories Open to Secure® (O2S®), Single Technology Readers, ROSSLARE Tag ROSSLARE Brand: Rosslare

Contactless smart card reader (13.56 MHz)
Meets ISO14443 Type A Standard
AES 128-bit encryption during transmission
Reads O2S ID data from O2S credentials
Reads CSN of non-O2S credentials
Output formats:
Wiegand (per format on O2S credential)
OSDP via RS-485 (selected models)
RGB multicolor light indicator
Blue backlit tact switch keypad
IP68 water and dust resistant for AY-x6270 pigtail models
IP65 water and dust resistant for AY-x6270 terminal block models and AY-x6370 models
IK08 vandal resistant for all AY-x6x70 models
Optical back tamper sensor
Two LED control and buzzer control inputs
Pigtail or terminal block connectivity
Antimicrobial technology reduces level of microbes on reader by up to 99.99%.

Additional information

Operating Voltage Range	6 to 16V DC
Input Current at 12V	Stand by:85mA, Maximum: 110mA
MIFARE Classic EV1 MIFARE Plus	40 to 45mm (1.5 to 1.8 in.) 30 mm (1.2 in.)
LED Control	Two Inputs: Green LED CTL and RED LED CTL–TTL
Auxiliary Input	Buzzer CTL or Hold CTL–TTL
Auxiliary Output	Tamper Output (OC, active low, max. sink current 30mA)
Supported Protocol	Wiegand OSDP Secure Channel V2
Output Format	O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26,32,34,40,56,64,128-bit and customized 1 Keypad: Four user-selectable standard formats available
Maximum Cable Distance to Controller	Wiegand:150m(500ft) with18-AWG cable OSDP(RS-485):1200m(4,000ft) with 2×218-AWG twisted shielded cable
Compatible Cards	MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K)
Operating Temperature	-31ºC to 63ºC(-24ºF to 145ºF)
Operating Humidity Range	0% to 95% (non-condensing)
Outdoor Usage	Weather-resistant, epoxy potted, suitable for outdoor use
Operating Environment	UV-resistant, epoxy-potted, suitable for indoor and outdoor use • IP68 water and dust resistant • AY-G6270 and AY-H6270 pigtail models • IP65 water and dust resistant • AY-G6270 and AY-H6270 terminal block models • AY-G6370 and AY-H6370
Vandal Resistance	IK08
Antimicrobial efficacy	Inhibits bacteria proliferation by up to 99.9%
Dimensions of Pigtail Models (H x W x D)	145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.)
Dimensions of Terminal Block and OSDP Models (H x W x D)	145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.)
Weight	155 g (5.5 oz)
