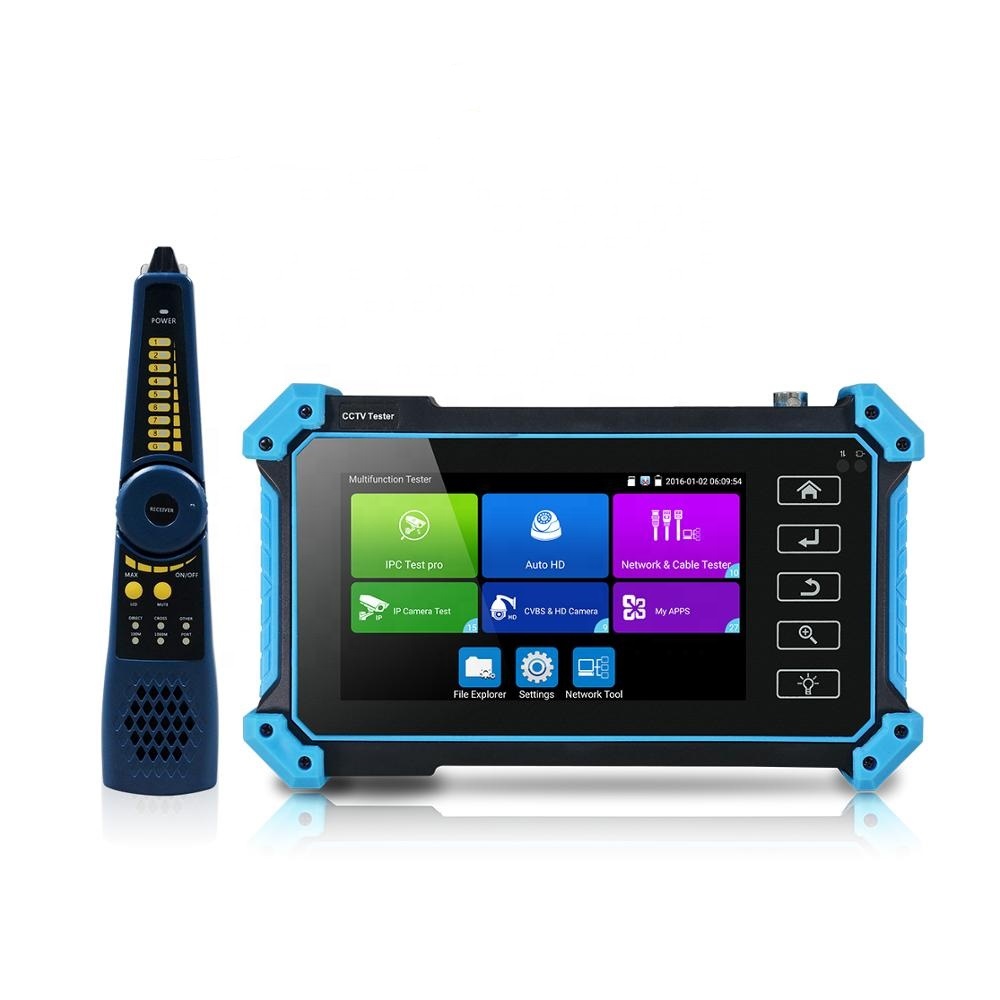

HDMT5500-T

MULTI-FUNCTIONS 5 INCH ALL IN ONE CCTV TESTER

SKU HDMT5500-T Category TOOLS Tag GREY|LINE

5 inch IPS touch screen, 1920 x 1080 resolutions
8MP CVI/ TVI/ AHD camera test
8MP EX-SDI, HD-SDI, 3G-SDI test*
H.265/H.264, 4K video display via mainstream
VGA input, support 1920 x 1200P 60FPS*
HDMI Input, support 4K 30FPS*
DC12V 3A, 48V PoE power output
Rapid ONVIF, Create the test report and modify IP address, etc
Auto HD, auto recognize HD coax camera type and resolution
RJ45 TDR cable test, cable quality test
UTP cable test, detect the near-end, mid-end and far-end fault point of the network cable crystal head

Additional information

LCD Display	New 5 inch IPS touch screen, 1920×1080 resolution
Power output	12V/3A power: Output DC12V/3A power out, supply temporarily power for the camera PoE power output :48V PoE power output, max power 25.5W
Tester Play	screen projection：Tester, mobile phone and PC display at the same time (For android version mobile phone)
Network test	Trace route, Link monitor, DHCP server, port flashing, Ping test
Wi-Fi	Built in WIFI, speeds 150M, display wireless camera image
Audio test	1 channel audio signal input, test whether sound normal
Power management	Display DC 12V input & output voltage and power in real time
Data monitor	Captures and analyzes the command data from controlling device, also can send hexadecimal
External power supply	DC 12V 1A
Battery	Built-in 7.4V Li-ion battery, 3350mAh
Rechargeable	After charging 3-4 hours, normal working time 5 hours
Auto off	1-30 (mins)
Working Humidity	30%-90%
Dimensions	183mm x 110mm x 36.5mm /0.32kg
