IPC-BU284T-IR-ZAS-S

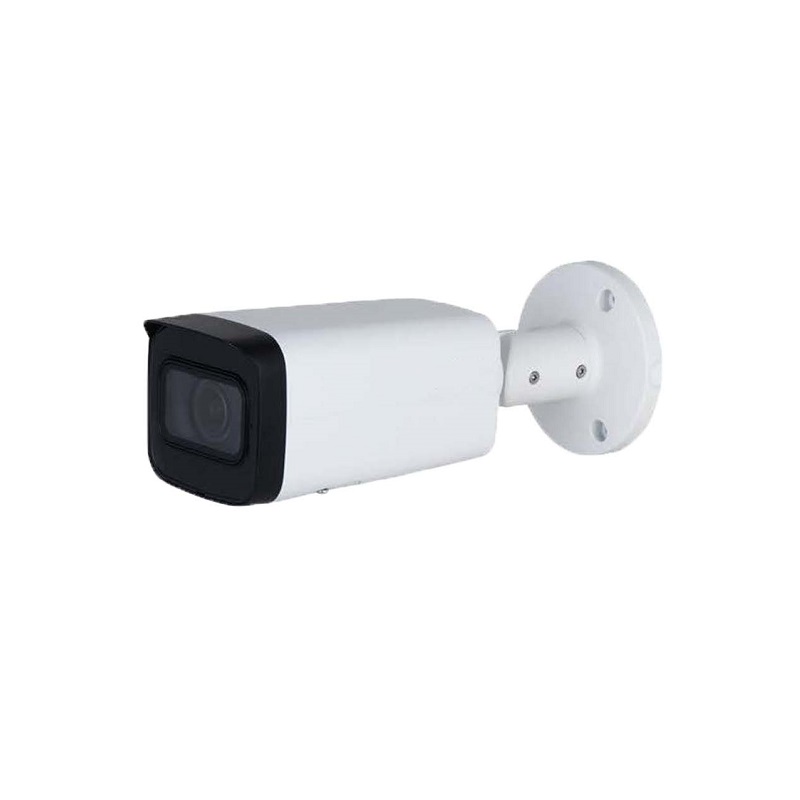

8MP IR Vari-focal Bullet WizSense Network Camera

SKU IPC-BU284T-IR-ZAS-S Category NETWORK CAMERAS Tag BLUE|LINE

8-MP 1/2.7‘’ CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 x 2160) @20 fps, and supports 2688 x 1520 (2688 x 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 60 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only ZAS supports); audio: 1 in, 1 out (Only ZAS supports); supports max. 256 G Micro SD card; built in MIC.
12 VDC/PoE power supply, easy for installation.
IP67, IK10 (optional)

Additional information

Image Sensor	1/2.7'' CMOS
Max. Resolution	3840 × 2160
ROM/RAM	128 MB/256 MB
Scanning System	Progressive
Shutter Speed	1/3 s to 1/100, 000 s, Auto/Manual
Illumination Distance	Up to 60 m (196.85 ft) (IR)
Pan/Tilt/Rotation Range	Pan: 0°–360° ; Tilt: 0°–90°; Rotation: 0°–360°
Lens Type	Varifocal Lens
Lens Mount	Φ14
Focal Length	2.7-13.5mm
Max. Aperture	F1.5
Field of View	H: 113°–31°; V: 58°–18°; D: 138°–36°
Iris Control	Fixed
Close Focus Distance	0.8 m (2.62 ft)
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
Power	12 VDC/PoE (802.3af)
Protection	IK10, IP67
Casing Material	Metal
Net Weight	-ZS: 0.74 kg (1.63 lb) -ZAS: 0.77 kg (1.70 lb)
Video Bit Rate	H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps
Network Port	RJ-45 (10/100 Base-T)
Storage	FTP; SFTP; Micro SD card (support max. 256 GB); NAS
