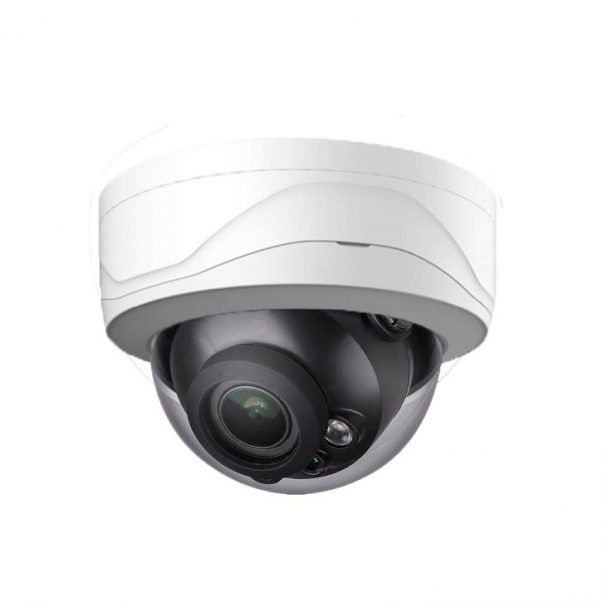

IPC-VD284R-IR-ZAS

8MP LITE IR VARI-FOCAL MOTORIZED DOME NETWORK CAMERA

SKU IPC-VD284R-IR-ZAS Category NETWORK CAMERAS Tag BLUE|LINE

8MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
Outputs max. 8MP (3840 x 2160) @15 fps, and supports 2688 x1520 (2688 x 1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 40 m
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, local alarm, voltage detection, audio abnormal
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card
12V DC/POE power support
IP67, IK10 protection

Additional information

Image Sensor	1/2.7'' Progressive Scan CMOS
Effective Pixels	3840(H)×2160(V)
ROM/ RAM	128 MB/256 MB
Scanning System	Progressive
Minimum Illumination	0.008 Lux@F1.5
IR Distance	40 m
Pan/Tilt/Rotation Range	Pan: 0°–355°; Tilt: 0°–67°; Rotation: 0°–355°
Video Bit Rate	H.264: 32 Kbps–8192 Kbps; H.265: 12 Kbps–8192 Kbps
Digital Noise Reduction	3D DNR
Image Rotation	0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)
Lens Type	Motorized Lens
Lens Mount	Φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Field of View	Pan: 113°–31°; Tilt: 58°–17°; Diagonal: 138°–36°
Video Compression	H.265; H.264; H.264B; MJPEG
Power	12V DC/PoE (802.3af)
Power Consumption	< 7.4W
Casing	Metal
Dimensions	Φ122 mm × 88.9 mm (Φ4.80" × 3.50")
Protection	IK10, IP67
