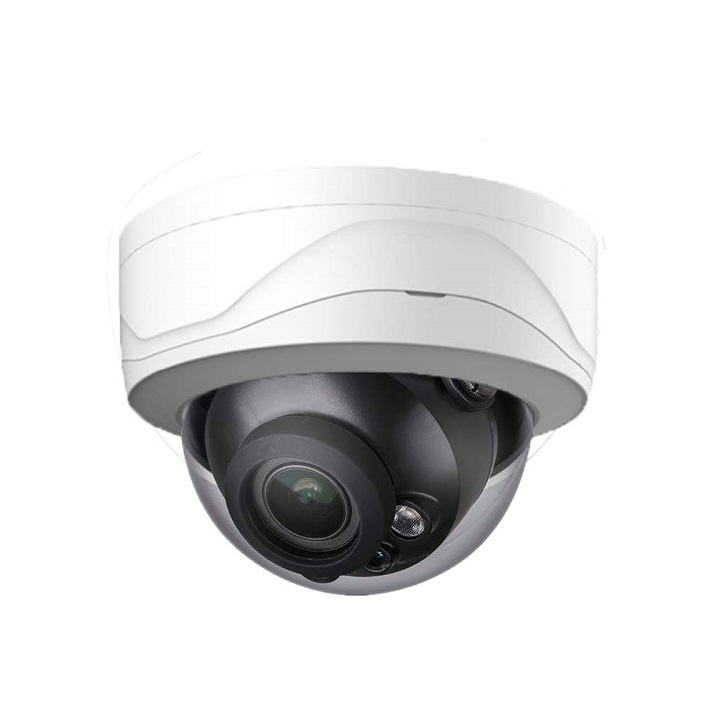

IPC-VD344R-IR-Z

4MP LITE AI IR VARI-FOCAL DOME NETWORK CAMERA

SKU IPC-VD344R-IR-Z Category NETWORK CAMERAS Tag BLUE|LINE

4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
Outputs max. 4MP (2688 × 1520)@30 fps
H.265 codec, high compression rate, low bit rate
Built-in IR LED, max. IR distance: 40 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card
12V DC/POE power support
IP67, IK10 protection
SMD

Additional information

Image Sensor	1/2.7'' Progressive Scan CMOS
Effective Pixels	2688(H)×1520(V)
ROM/ RAM	128 MB/512 MB
Scanning System	Progressive
Shutter Speed	1/3 s to 1/100, 000 s, Auto/Manual
Minimum Illumination	0.005 Lux@F1.5
IR Distance	40 m
Pan/Tilt/Rotation Range	Horizontal: 0°–355°; vertical: 0°–75°; rotation: 0°–355°
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
Lens Type	Varifocal Lens
Lens Mount	Φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Field of View	Horizontal: 104°–27°; Vertical: 55° –15° ; Diagonal: 124° –31°
Edge Storage	FTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG
Video Bit Rate	H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps
Power	12V DC/PoE (802.3af)
Power Consumption	<8.5W
Protection	IK10, IP67
Casing	Metal + plastic
Dimensions	Φ122 mm × 88.9 mm (Φ4.8" × 3.5")
Net Weight	492 g (1.1 lb)
Gross Weight	663 g (1.5 lb)
