IPC2328SB-DZK-I0

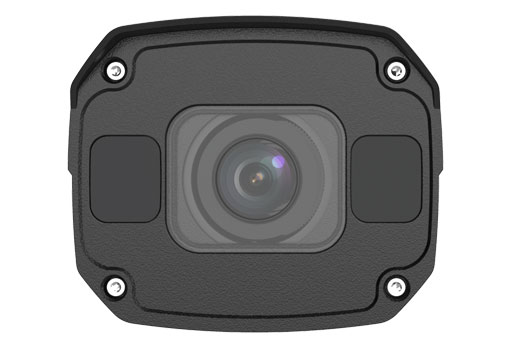

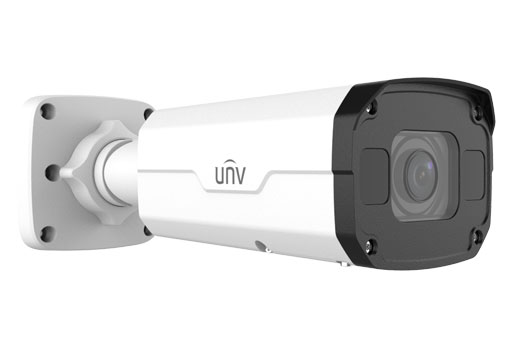

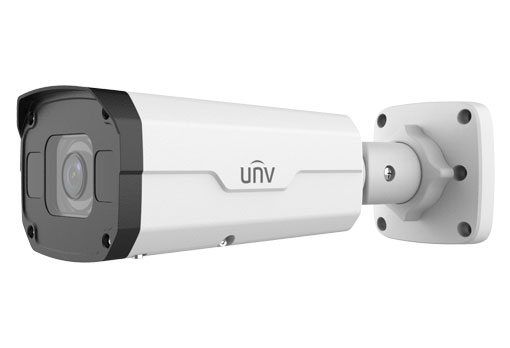

8MP HD LightHunter IR VF Bullet Network Camera

SKU IPC2328SB-DZK-I0 Categories , Tag Brand:

  • High quality image with 8MP, 1/2.8” CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Alarm:1 in/1 out, Audio: 1 in/1 out
  • Smart IR, up to 50m (164ft) IR distance
  • Supports 256 G Micro SD card
  • IK10 vandal resistant
  • IP67 protection
  • Support PoE power supply

Additional information

Image Sensor

Lens Size

Adjustment angle

Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360°

Shutter Speed

1s to 1/100000s

Minimum Illumination

AGC ON); 0 lux with IR, Colour:0.003 lux (F1.6

Day/Night

IR-cut filter with auto switch (ICR)

Digital Noise Reduction

IR Range

Wavelength

WDR

Camera Style

Video Compression

Ultra 265, H.265, H.264, MJPEG

Video Bit Rate

Camera Resolutions

Edge Storage

MicroSD,up to 128GB

Network Storage

ANR

Certifications

CE: EN 60950-1, FCC: FCC Part 15, UL: UL60950-1

Power

DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 10.5W

Dimensions

245 × 86 × 72mm (9.6” × 3.4” × 2.8”)

Net Weight

0.92kg (2.03lb)

Material

Metal

Surge Protection

6KV

Protection

Vandal Resistant

IK10
