IPC3624SR-ADF28(40)KM-WP

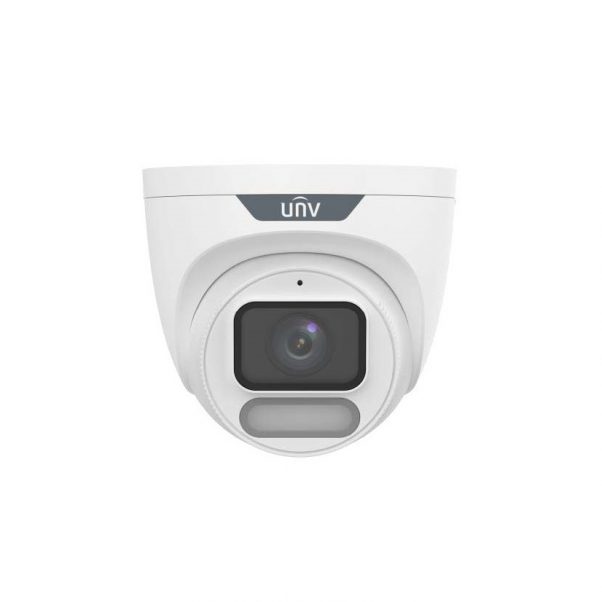

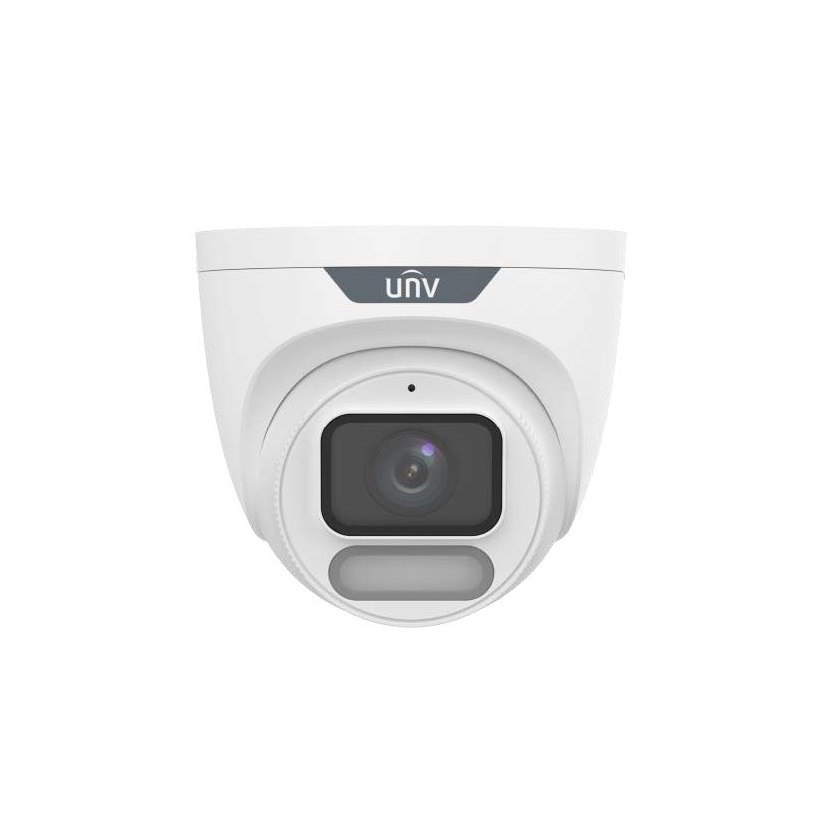

4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera

SKU IPC3624SR-ADF28(40)KM-WP Categories UNV, NDAA Tag NDAA Brand: UNV

High quality image with 4MP, 1/1.8″CMOS sensor and F1.0 large aperture lens
4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
Ultra 265, H.265, H.264, MJPEG
Colorhunter with Wise-ISP technology ensures 24-hour full-color images
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
White Light, up to 30m (98ft) warm light distance
Supports 256 GB Micro SD card
IP67 protection
Support PoE power supply
3-Axis

Additional information

Resolution	4MP
Image Sensor	1/1.8'' CMOS
Minimum Illumination	Colour: 0.0003 lux (F1.0, AGC ON)
Shutter Speed	1s to 1/100000s
Adjustment angle	Pan: 0°to 360°, Tilt: 0°to 75°, Rotate: 0°to 360°
WDR	120 dB
Lens Size	2.8mm, 4mm
Illumination Distance	30m
Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps to 6144 Kbps
Image White Balance	Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction	2D/3D DNR
Audio Bit Rate	64 Kbps
Edge Storage	Micro SD, Up to 256GB
Network	1 * RJ45 10M/100M Base-TX Ethernet
Protection	IP67 (IEC 60529)
Power	DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 2.8W
Power Interface	5.5mm coaxial power plug
Dimensions	Φ118x106mm (4.6” x 4.2”)
Weight	0.48kg(1.06lb)
Material	Metal
Surge protection	4KV
Safety Certification	CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
