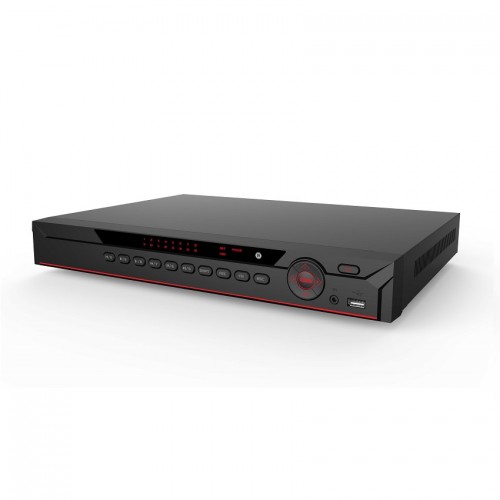

8 Channel Penta-brid 4K 1U Digital Video RecorderSeries
| Main Processor | Embedded Processor |
|---|---|
| Operating System | Embedded LINUX |
| Analog Camera Input | 8 Channel, BNC |
| HDCVI Camera | 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
| IP Camera Input | 8+8 Channel, each channel up to 8MP |
| Compression | H.265+/H.265/H.264+/H.264 |
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Audio Bit Rate | 64Kbps Per Channel |
| Resolution | HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Playback | 8CH: 1/4/9 |
| Internal HDD | 2 SATA Ports, up to 10TB capacity for each disk |
| USB/ RS232/ RS485 | USB: 2 USB Ports (1 USB 2.0 , 1 USB 3.0) RS232: N/A RS485: 1 Port, for PTZ Control |
| Power | DC12V |
| Power Consumption | 8CH: <10W (Without HDD) |
| Dimensions | 1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1") |
| Net Weight | 1.8kg (3.70 lb) (without HDD) |
| Gross Weight | 3.2kg (7.05lb) |
| Installation | Desktop installation |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
