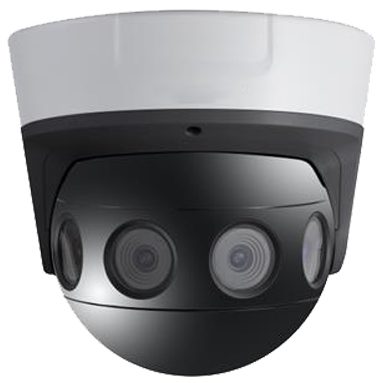

8 MP PanoVuSeries Panoramic Dome Camera
| Image Sensor | |
|---|---|
| Minimum Illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0.007 Lux @ (F1.8, AGC ON), B/W: 0.0008 Lux @(F1.2, AGC ON), 0.002 Lux @(F1.8, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/25 s to 1/100, 000 s |
| 2-Axis Adjustment | Pan: 0° to 355°, tilt: 0° to 90° |
| Lens Size | 4 x 6mm lens |
| Lens Mount | |
| IR Range | |
| Wavelength | |
| Video Compression | Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG |
| Video Bit Rate | |
| Power | 12 VDC ± 20%, three-core terminal block, PoE: 802.3at, class 4 |
| Power Consumption and Current | 12 VDC, 1.5A, max. 18W PoE (802.3at, 42.5V to 57V), 0.6A to 0.4A, max. 25W |
| Simultaneous Live View | Up to 20 channels |
| Package Dimension | 190 × 207 × 208 mm (7.5" × 8.2" × 8.2") |
| With Package Weight | 3500 g (7.7 lb.) |
