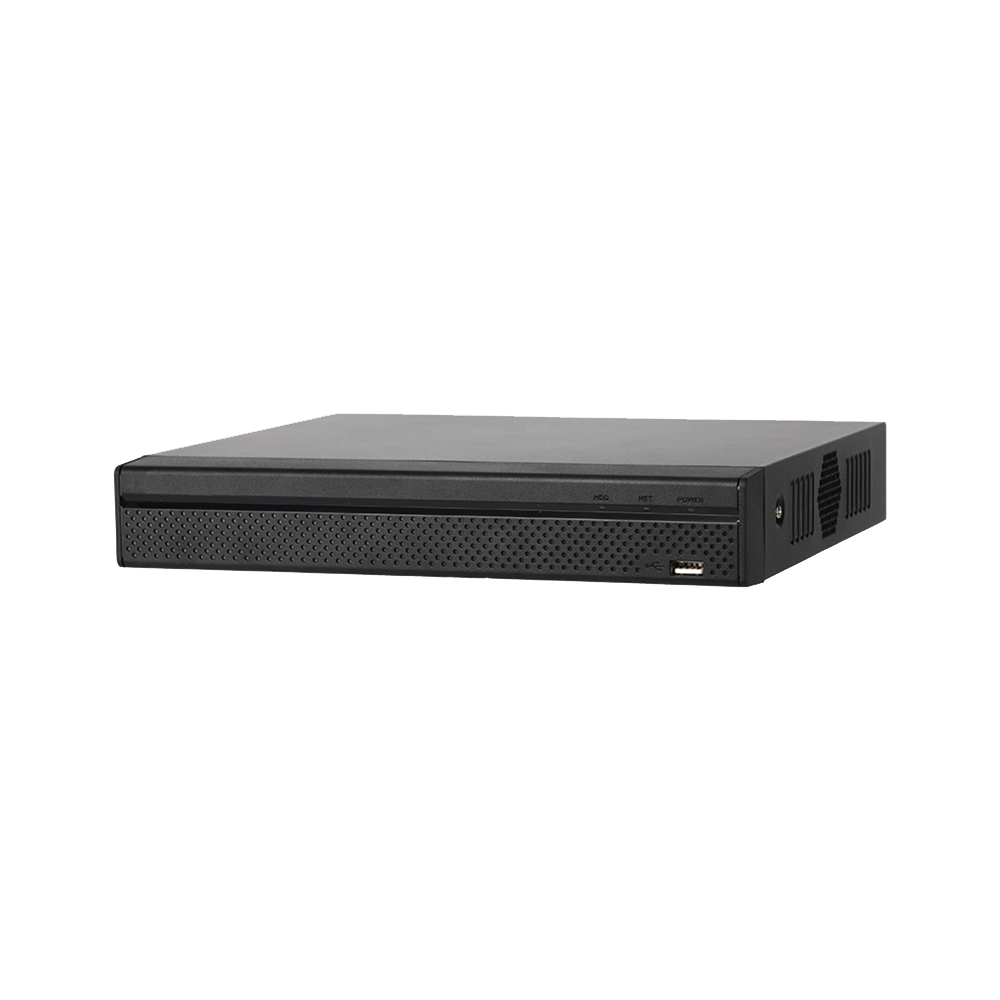

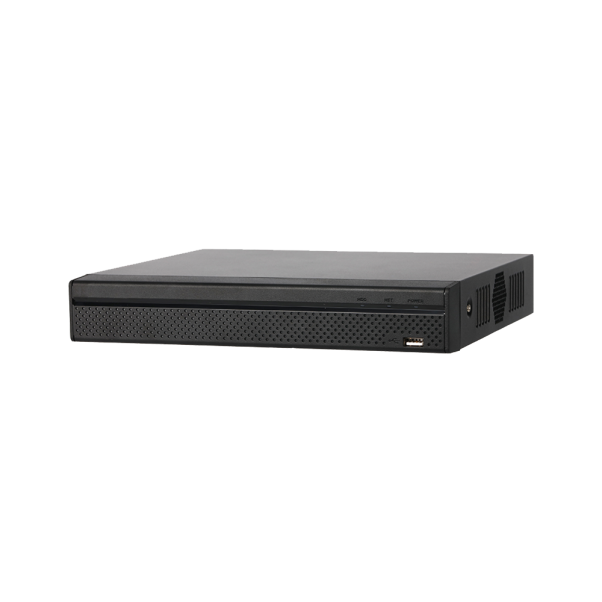

4 CHANNEL COMPACT 1U 1HDD 4POE NETWORK VIDEO RECORDER
| Main Processor | Industrial-grade processor |
|---|---|
| OS | Embedded Linux |
| Operation Interface | Web; local GUI |
| Performance | 4 channels |
| AI Search | Search for pictures by channel, time and event type |
| Face Attributes | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
| HDD | 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| USB | 2 (1 × front USB2.0; 1 × back USB2.0) |
| HDMI | 1 (supports up to 4K resolution output) |
| Network | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| POE | 4 |
| Network Bandwidth | Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps |
| Resolution | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
| Decoding Capability | 8 × 1080p@30 fps |
| Video Output | 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI |
| Video | Smart H.265/H.265/Smart H.264/H.264/MJPEG |
| Record Mode | Manual record; alarm recording; SMD recording; smart recording |
| Storage | Local HDD; network |
| Power | 48 V/53 VDC, 1.25 A/1.13 A |
| Power Consumption | < 10 W (HDD not included, idling) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W |
| Net Weight | 0.86 kg (1.90 lb) |
| Gross Weight | 1.86 kg (4.10 lb) |
| Product Dimensions | 260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98") |
| Package Dimensions | 117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") |
