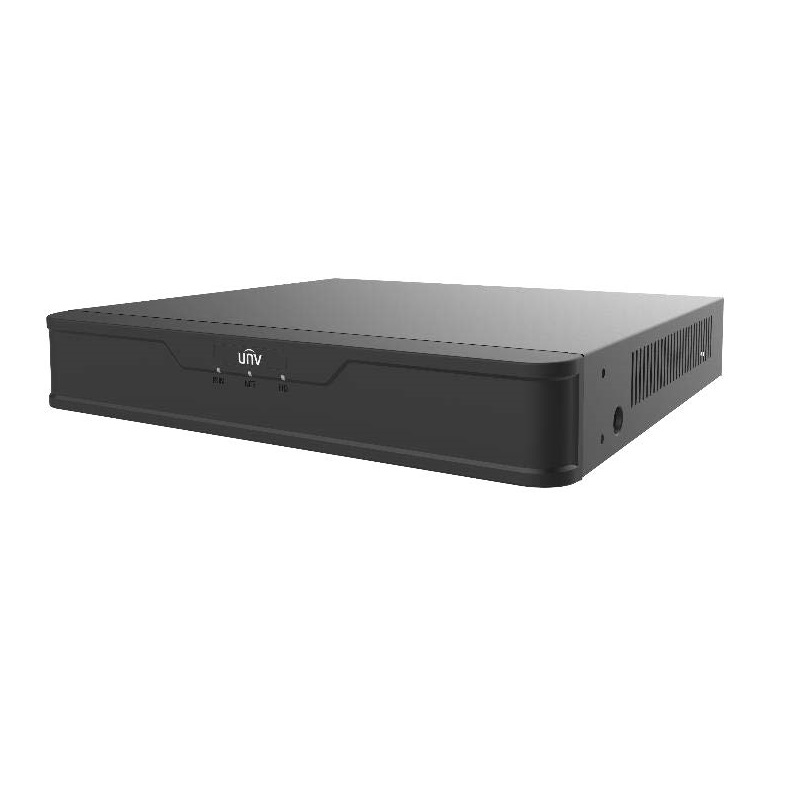

NVR501-8B-P8

NVR501-8B-P8

Network Video Recorder

SKU NVR501-8B-P8 Categories UNV, NDAA Tag NDAA Brand: UNV

Support Ultra 265/H.265 video formats
4/8-channel input
Plug & Play with 8 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support HDMI and VGA simultaneous output
Up to 8 Megapixels resolution recording
1 SATA HDDs, up to 8TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Additional information

IP Video Input	8-ch
Audio Input	1-ch, RCA
Incoming Bandwidth	80Mbps
Outgoing Bandwidth	64Mbps
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
FTP/Schedule/Event Snapshot	FTP/Schedule/Event Snapshot
Decoding format	Ultra 265/H.265
Live view/Playback	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30
SATA	1 SATA Interfaces
Capacity	Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
Interface Network	1 RJ45 10M/100M self-adaptive Ethernet Interface
Power	52V DC/1.8A Power Consumption: ≤ 10W (without HDD)
Dimensions (W×D×H)	260mm × 222mm × 47mm (10.2" × 8.7" × 1.8")
Weight (without HDD)	≤ 0.98Kg (2.16lb)

product manual

NVR501-08B-P8.pdf
