P-HDMI-1X4-4K

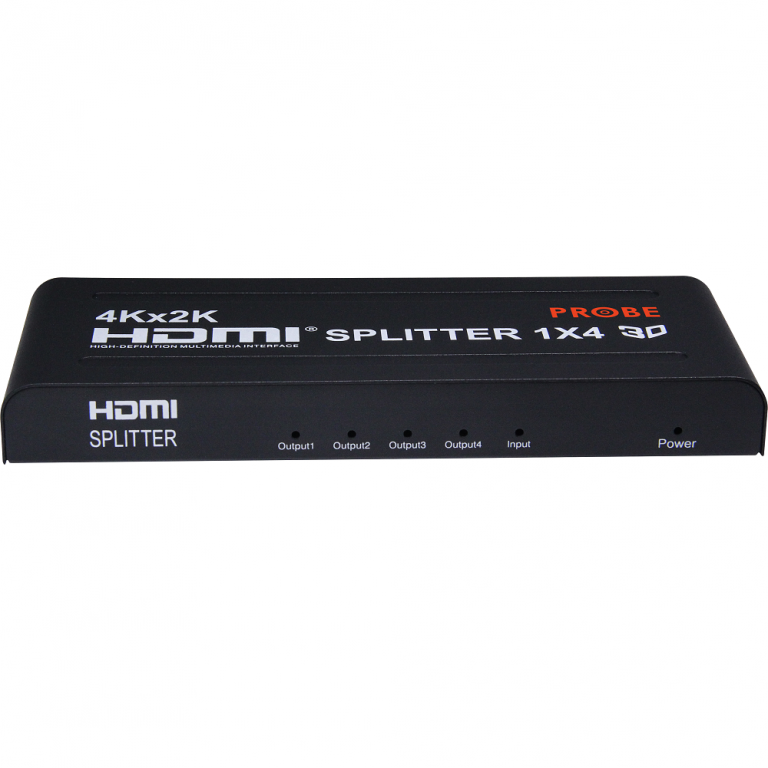

1 x 4 4K HDMI SPLITTER

SKU P-HDMI-1X4-4K Category HDMI SPLITTERS Tag GREY|LINE

Support HDMI 1.4b version
Support 3D video format
Support high resolution up to 3840 x 2160/30Hz
Support highest rate of 3.4 G and TMDS clock can be up to 340 MHz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable: input up to 20 meters, output up to 20 meters. (when the resolution is 4K, input up to 15 meters, output up to 15 meters.)
Support one single HDMI source, accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.

Additional information

HDMI version	HDMI 1.4b
HDMI resolution	up to 3840*2160/30Hz
Support video format	8/10/12 bit deep color
Support audio format	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth	340MHz
Max baud rate	3.4Gbps
Input cable distance	(1080p resolution) ≤20m, (4K resolution)≤15m AWG26 HDMI standard cable
Output cable distance	(1080p resolution) ≤20m,(4K resolution)≤15m AWG26 HDMI standard cable
Max working current	500mA
Power adapter format	input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1.5A
Dimension	178x67x23 (mm)
Weight	230g
