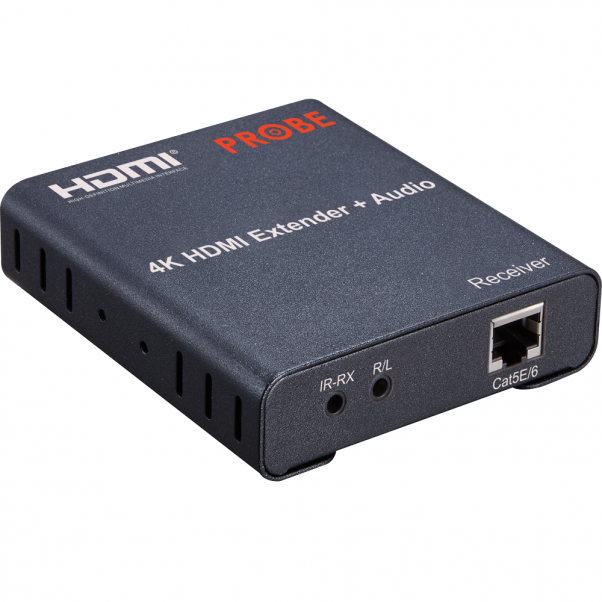

4K HDMI EXTENDER PLUS AUDIO
| Length of CAT5e/CAT6 cable between Rx and TX | Up to 100 meters |
|---|---|
| HDMI Input | 4k/1080p/720p/576p/576i/480p/480i |
| HDMI Output | 4k/1080p/1080i/720p/576p/576i/480p/480i |
| Max bandwidth | 340MHz |
| Max baud rate | 3×3.4Gbps |
| Input video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TTL) |
| Input HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| Output HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| TX Max working current | 350mA |
| RX Max working current | 200mA |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimensions | 81×87.5×23.5 (mm) |
| TX Weight | 210g |
| RX Weight | 200g |
