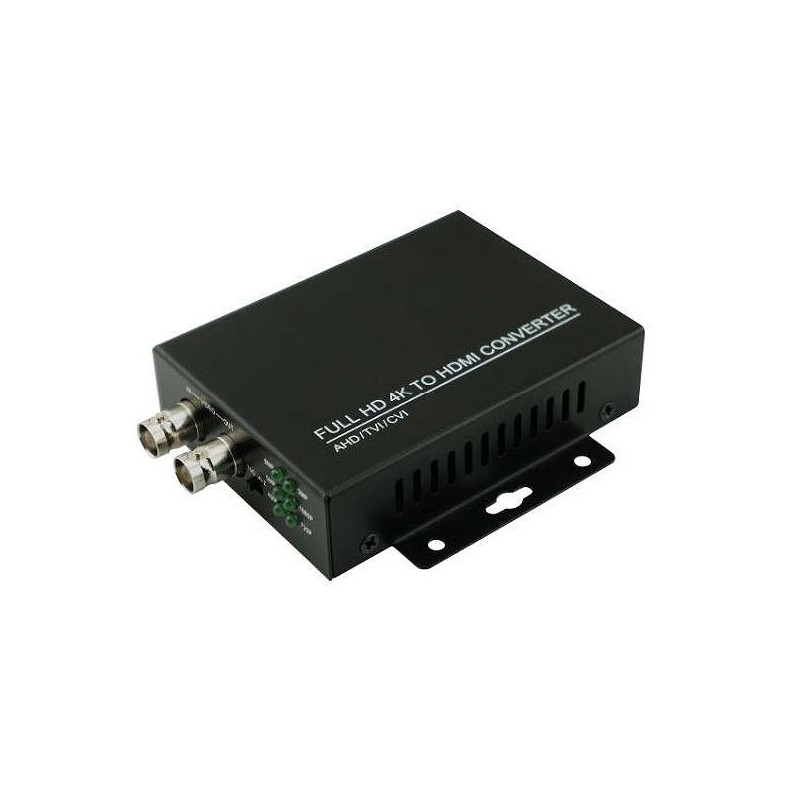

W-HDA-HDMI-100

4K CVI/TVI/AHD+CVBS TO 4 HDMI MONITORS

SKU W-HDA-HDMI-100 Category HDMI SPLITTERS Tag GREY|LINE

Support up to AHD 8MP, TVI 8MP, CVI 8MP test
CVI/TVI/AHD+CVBS to HDMI, HDMI output 1080P
Connect HD Monitor, HD coaxial output HDMI Input Display simultaneous
One channel AHD/TVI/CVI/CVBS loop out
Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display

Additional information

Input Port	One channel CVI/TVI/AHD/CVBS BNC input
Output Port	One Channel CVI/TVI/AHD/CVBS BNC output ，One channel HDMI output
Cable length	500~700meters, Different resolution, different transmission distance
External power supply	DC 5V（1A）
Working Humidity	30%-90%
Dimension/Weight	109mm x 94mm x 25mm / 0.18kg
